I received business task to prepare orders/sales report:

  • Business requirement is, to be able, to show how much we sale from WWW source, in terms of new clients
  • Technical requirements are:
    1. To connect: contact_form table, with orders table, by a algorithm:
      • join by email address
      • deduplication on order_id (we want to present max one order/sale for best contact_form)
      • best contact_form will have:
        • creation date maximum 30 days before order date (it represent new client - first contact within 30 days before order)
        • source - only www
    2. Report should refresh automatically

1) First, I will create separate table, for the report results:

create table sales_report (
    order_id            NUMBER,
    order_tms           DATE,
    customer_id         NUMBER,
    contact_form_id     NUMBER,
    contact_date        DATE,
    full_name           VARCHAR2(100),
    email_address       VARCHAR2(100),
    source              VARCHAR2(100),
    CONSTRAINT sales_report_pk PRIMARY KEY (order_id)
);

2) Second, I want to update email address (in order table) into 4 customers (with biggest amount of orders), in order to connect orders table with contact_form table

ALTER TABLE orders ADD email_address VARCHAR2(100);
/
MERGE INTO orders
    USING (
        --retriving 4 customers (with biggest amount of orders)
        select e.*, f.email_address
        from (
            select d.*,
            ROWNUM as intConncetion
            from (
                select o.customer_id,
                min(o.order_tms) as min_order_tms,
                max(o.order_tms) as max_order_tms,
                EXTRACT(DAY FROM (round(max(o.order_tms) - min(o.order_tms)))) as diff_tms,
                c.order_amount
                from orders o
                --filtering 4 csutomers with biggest amount of orders;
                join (
                    select b.*
                    from (
                        select a.*,
                        ROW_NUMBER() OVER(ORDER BY a.order_amount DESC) AS rankOrder_amount
                        from (
                            select customer_id, count(*) as order_amount
                            from orders
                            group by customer_id
                            order by 2 desc
                        ) a
                    ) b
                    where b.rankOrder_amount <= 4
                ) c
                on o.customer_id = c.customer_id
                group by o.customer_id, c.order_amount
            ) d
        ) e
        join (
            select a.*, ROWNUM as intConncetion
            from (
                select distinct email_address
                from contact_form
            ) a
        ) f
        on e.intConncetion = f.intConncetion
        order by order_amount desc
    ) email
    ON (orders.customer_id = email.customer_id)

  WHEN MATCHED THEN
    UPDATE SET orders.email_address = email.email_address;
/
COMMIT;

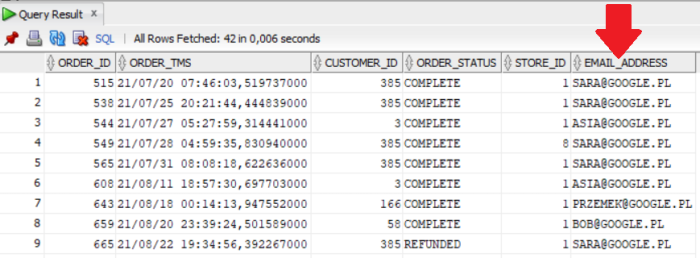

results =>

select * from orders where email_address is not null;

3) I'm creating procedure to insert new rows into destination table: sales_report

CREATE OR REPLACE PROCEDURE p_sales_report IS
BEGIN

    INSERT INTO sales_report (order_id, order_tms, customer_id, contact_form_id, contact_date, full_name, email_address, source)
    SELECT a.order_id, a.order_tms, a.customer_id, a.contact_form_id, a.contact_date, a.full_name, a.email_address, a.source
    from (
        select o.*, c.CONTACT_FORM_ID, c.CONTACT_DATE, c.FULL_NAME, c.SOURCE,

        --best contact_form will have:
        --1) contact date maximum 30 days before order date (it represent new client)
        --2) source - only www
        (CASE
        WHEN ((to_date(to_char(o.order_tms,'yy/mm/dd'),'yy/mm/dd') - c.contact_date) between 0 and 31)
        THEN ROW_NUMBER() OVER(PARTITION BY o.order_id, (CASE WHEN ((to_date(to_char(o.order_tms,'yy/mm/dd'),'yy/mm/dd') - c.contact_date) between 0 and 31) THEN 1 ELSE 0 END)
        ORDER BY c.contact_date ASC)
        END) AS best_www_lead

        from orders o

        join contact_form c
        on o.email_address = c.email_address
            and o.email_address is not null

        ORDER BY o.order_id, c.contact_date ASC
    ) a

    --only new rows
    left outer join sales_report sales
    on a.order_id = sales.order_id

    where a.best_www_lead = 1 --sales requirements
    and a.SOURCE = 'WWW'
    and sales.order_id is null; --only new rows

    COMMIT;

END;

4) run procedure - we inserted 16 rows, and count results =>

BEGIN
   p_sales_report;
END;
/
select count(*) from sales_report;

5) Below I will present some logic behind the scenes =>

query =>

select a.*
from (
    select o.order_id, o.order_tms, o.customer_id, c.*,

    --best contact_form will have:
    --1) contact date maximum 30 days before order date (it represent new client)
    --2) source - only www
    (CASE
        WHEN ((to_date(to_char(o.order_tms,'yy/mm/dd'),'yy/mm/dd') - c.contact_date) between 0 and 31)
        THEN ROW_NUMBER() OVER(PARTITION BY o.order_id, (CASE WHEN ((to_date(to_char(o.order_tms,'yy/mm/dd'),'yy/mm/dd') - c.contact_date) between 0 and 31) THEN 1 ELSE 0 END)
        ORDER BY c.contact_date ASC)
    END) AS best_www_lead

    from orders o

    join contact_form c
    on o.email_address = c.email_address
        and o.email_address is not null
        and o.order_id in (515, 1280)

    ORDER BY o.order_id, c.contact_date ASC
) a
where a.best_www_lead <= 3;

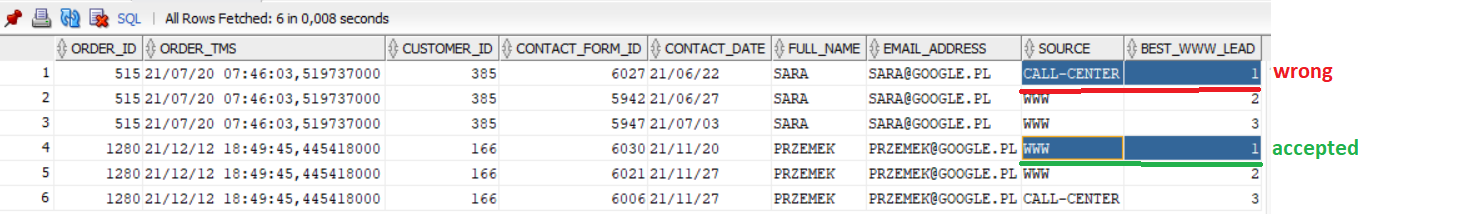

click to zoom in =>

Order_id 515 is rejected, because first contact within 30 days is from wrong source (CALL-CENTER)

Order_id 1280 is accepted to sales report, because first contact happened within 30 days, and demanded source (WWW)

6) Test results (if new sale appear?), after insert new row into orders table =>

INSERT INTO orders (order_tms, customer_id, order_status, store_id, email_address)
values ('21/09/01', 166, 'COMPLETE', 1, 'PRZEMEK@GOOGLE.PL');
/
COMMIT;
/
BEGIN
   p_sales_report;
END;
/
select count(*) from sales_report;

7) Great, everything works perfect. Now, optional you can make job - to repeat procedure execution everyday =>

BEGIN
   dbms_scheduler.create_job (
    job_name => 'job_p_sales_report',
    job_type        => 'STORED_PROCEDURE',
    job_action      => 'p_sales_report',
    start_date => CURRENT_TIMESTAMP,
    enabled => true,
    repeat_interval => 'FREQ=DAILY;INTERVAL=1; byhour=11; byminute=26;'
   );
END;
